Best system for crystallisation

AGI Benchtop Filter Reactor is a compact system that integrates the functionality of a reactor and a filter in one system at a benchtop scale. The result is a seamless workflow for crystallisation processes. Our Benchtop Filter Reactor performs synthesis of crystalline products and subsequent filtration/washing cycles and its full jacket design allows reactions to happen efficiently due to excellent thermal transfer.

Filtration is assisted by either vacuum or gravity, and the resulting product cake can be dried under vacuum. A quickly removable filtration part makes it easy to collect wet product cake or dried powder, change the filter cloth, and clean the filter. The filter membrane/cloth can be chosen based on your process need.

Reaction, filtration and washing in one vessel

Contamination-free material processing

Vessel swing/rotating mechanism for easy product collection

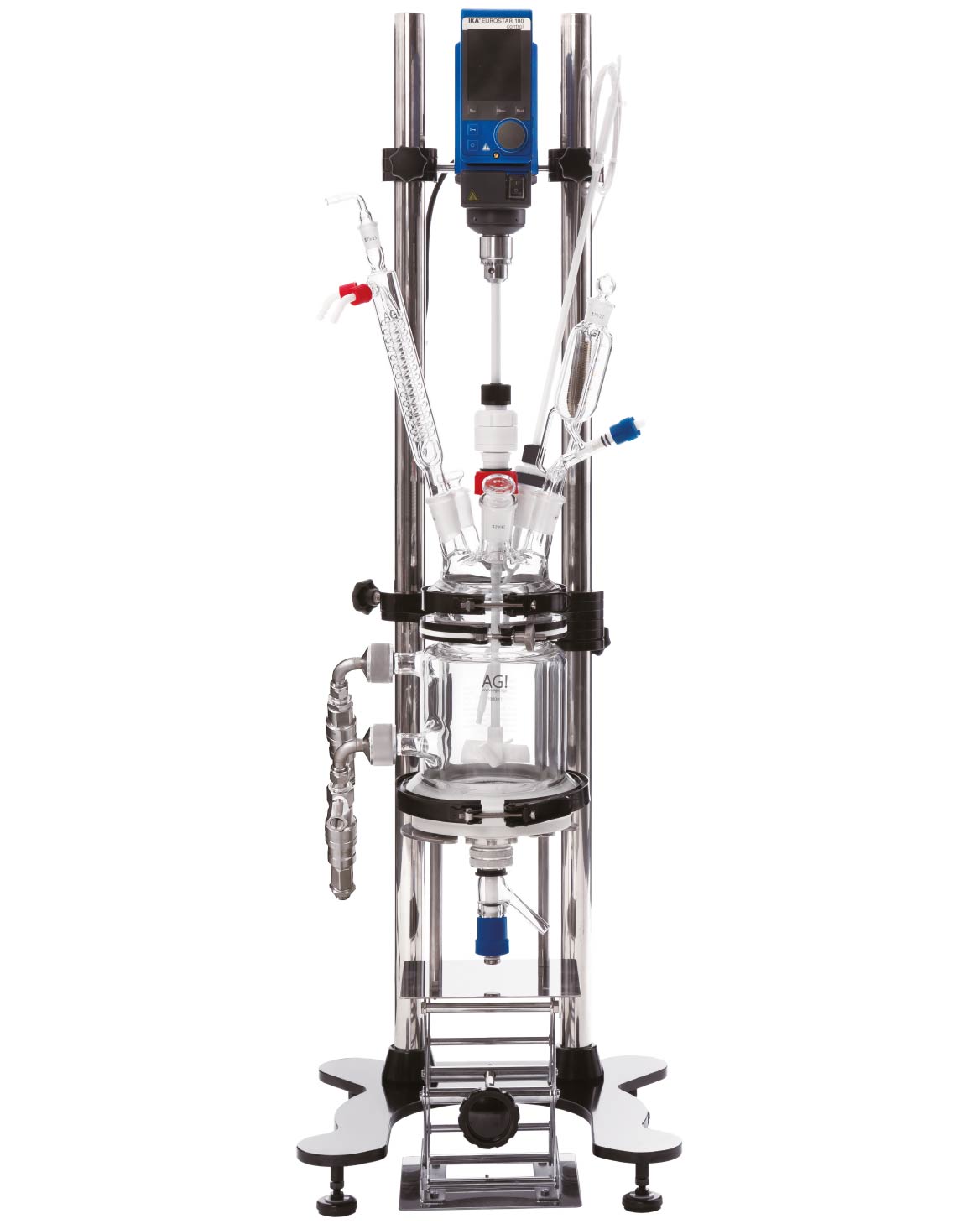

Benchtop Filter Reactor

Why should you choose AGI Benchtop Filter Reactor?

AGI Benchtop Filter Reactor is designed to accommodate reaction and filtration processes in one vessel. Most types of crystallisation processes can be performed in this system with a simplified work flow.

Reaction & Filtration Icon

Reaction and filtration in
a single vessel

Product Quality Icon

Minimal direct handling
= prevent product loss

Reduce Costs Space and Time Icon

Saves time
and process running costs

Wide process temperature range

Wide process temperature range;
-40 ℃ to +200 ℃

High thermal shock value

High thermal shock resistance
ΔT: 110 ℃ (Double wall)

Full Jacketed Vessel Icon

Full jacket design with
excellent temperature control

Removable drain valve for easy cleaning

Easy cleaning
and maintenance

Interchangeable vessels and accessories

Interchangeable vessels
and accessories

Premium Features Icon

Premium features provide
great user experience

For a more in-depth explanation of why AGI filtration systems are best for you, click here.

Functionality

Reaction – vacuum to atmospheric pressure

Filtration – vacuum or gravity assisted

Temperature regulation

Temperature monitoring

Reflux condensation

Agitation

Dosing liquids

Additional functionality - see our Customisation section

General specifications

 Vessel capacity1 L, 2 L, 3 L and 5 L
 Vessel typeDouble wall, full jacket
Filtration area78.5 cm² (1 L & 2 L)
176.7 cm² (3 L & 5 L)
Operating pressureFull vacuum to atmospheric pressure
Operating jacket pressureUp to +0.5 barG (0.05 MPa)
Operating temperature-40 °C to +200 °C
ΔT - Thermal shock resistance110 °C (double wall)

Note:
Overhead stirrer, circulator and chiller are not included
Wetted parts: Borosilicate glass 3.3, PTFE, Viton, Perfluoro

Benchtop Filter Reactor

Customisation possibilities

AGI Benchtop Filter Reactor can be customised and we are happy to discuss the design of custom features with you in order to meet your specific process need. Our technical knowledge and skill in manufacturing scientific glassware means that we can implement almost any requirement and ensure that the custom reactor features are both reliable and user friendly.

AGI Filter Reactor customisation examples

  • Double jacketed vessels
  • Higher operating pressure up to 0.5 bar G

Something else in mind?

At AGI, we can help to find the best solution for you. If you have additional requirements or a design already in mind, feel free to send us a message and/or drawing so that we can understand your process better and provide you with a customised product that meets your exact needs.
