Pressurised filtration
in an all glass design

AGI Benchtop Nutsche Filter is designed for solid-liquid separation applications. Pressures of up to 2 barG can be applied in the vessel, which helps to accelerate filtration and reduce solvent evaporation at elevated temperatures.

Manual agitation using a flat blade allows gentle slurry mixing, dissolution, cake smoothing and free flowing powder formation. Benchtop Nutsche Filter offers a convenient method for solid-liquid separation with a high degree of containment and material safety.

Accelerated filtration

Minimal product loss and cross-contamination

All glass design for process visibility

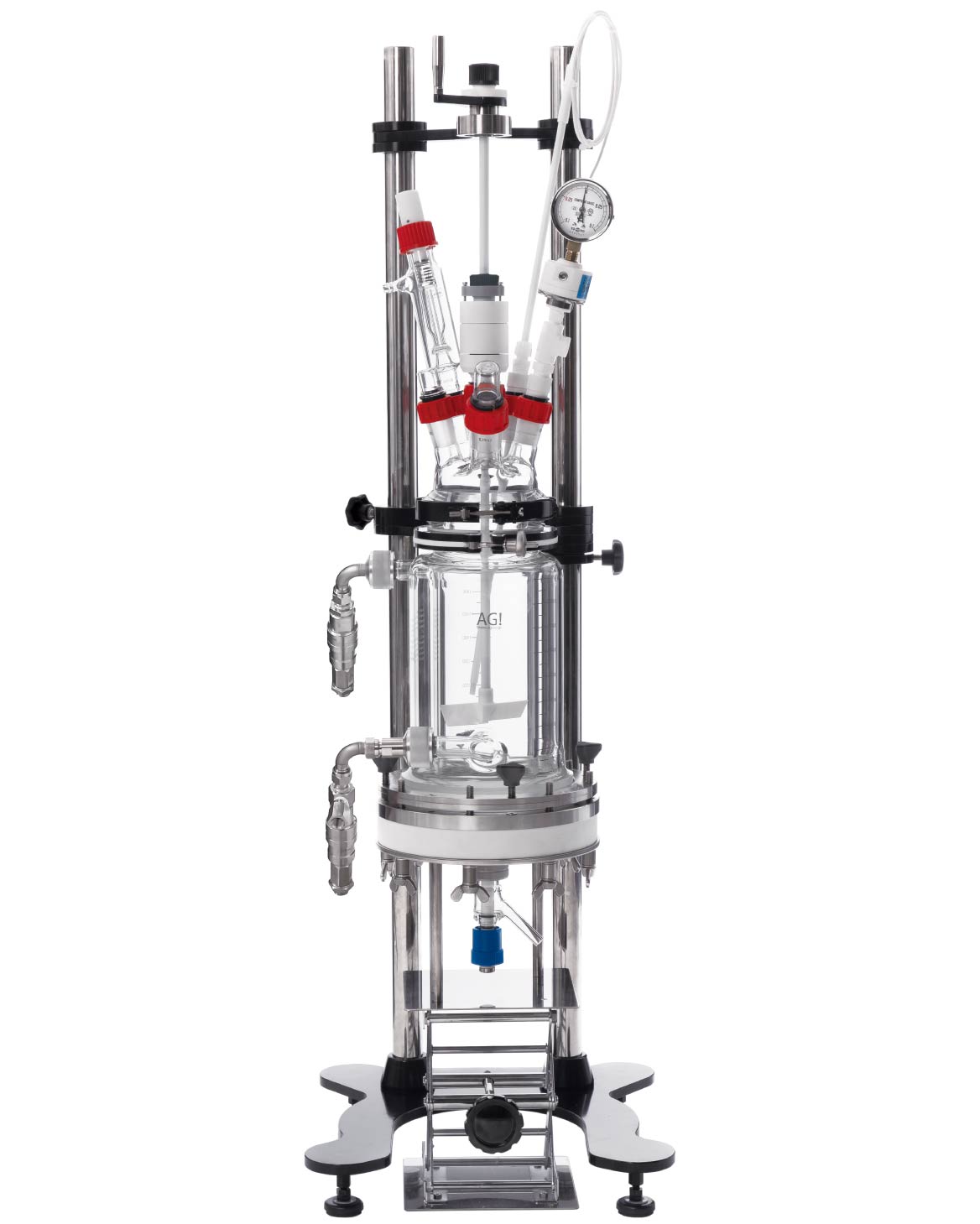

AGI Glassplant Benchtop Nutsche Filter

Why should you choose AGI Benchtop Nutsche Filter?

AGI Benchtop Nutsche Filter is designed to accommodate all steps of the solid-liquid separation process. It offers material safety and prevents cross-contamination during material processing.

Pressure Icon

Pressurised filtration
up to 2 bar G

Jacketed and Non Jacketed Vessels Icon

Jacketed and non-jacketed
versions

Full Jacketed Vessel Icon

Full jacket design for
maximised thermal transfer

Safety Icon

Integrated pressure relief
and shield
for safety

Glass Icon

All glass design for
continuous process visibility

Removable drain valve for easy cleaning

Removable filter and flush valve
for easy cleaning

Wide process temperature range

Wide process temperature range
-90 ℃ to +200 ℃

Vessel Tilt Icon

Vessel tilt function for
easy product recovery

For an in-depth explanation of why AGI filtration systems are best for you, click here.

Functionality

Pressurised Filtration
up to 2 barG

Hand operated mixing
(Motorised - Optional)

Temperature regulation
in jacketed versions

Temperature Monitoring

Pressure Monitoring
and relief

General specifications

 Vessel capacity1 L, 2 L, 3 L and 5 L
 Vessel typeSingle wall or double wall (full jacket)
Filtration area78.5 cm² (1 L & 2 L)
176.7 cm² (3 L & 5 L)
Operating pressureFull vacuum to +2 barG (+0.2 MPa)
Operating jacket pressureUp to +0.5 barG (+0.05 MPa)
Operating temperature-90 °C to +200 °C
ΔT - Thermal shock resistance110 °C (double wall)

Note:
Overhead stirrer, circulator and chiller are not included
Wetted parts: Borosilicate glass 3.3, PTFE, Viton, Perfluoro

Benchtop Filter Reactor

Something else in mind?

At AGI, we can help to find the best solution for you. If you have additional requirements or a design already in mind, feel free to send us a message and/or drawing so that we can understand your process better and provide you with a customised product that meets your exact needs.
